Auger Sizing

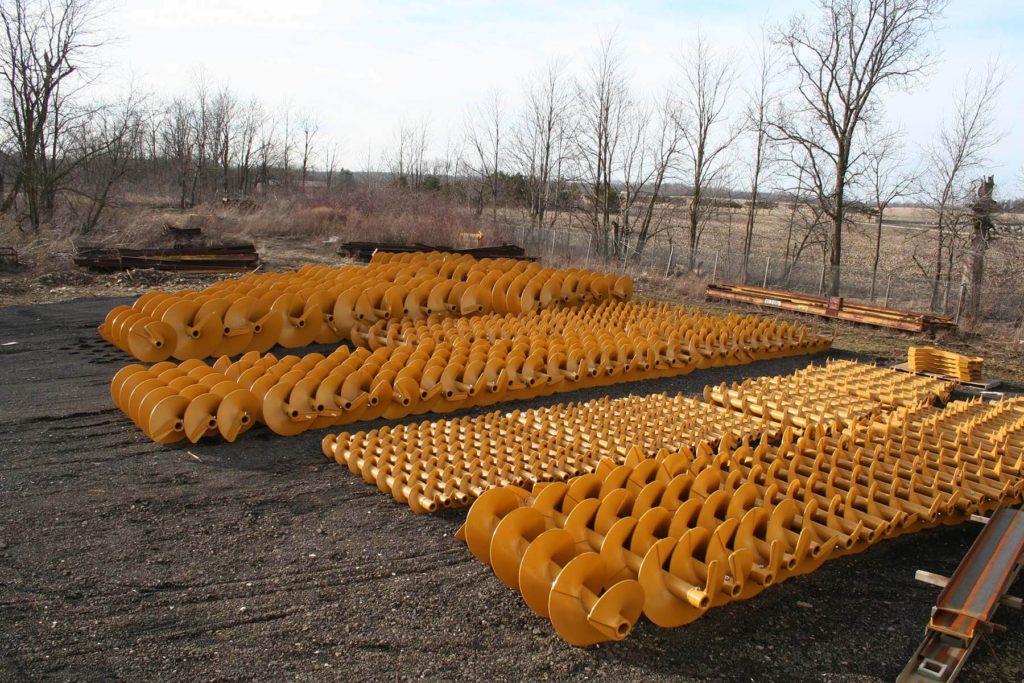

Michael Byrne Auger has over 50 years experience manufacturing auger for the Trenchless Contractor and is recognized as the industry leader for durability with heavy wall auger tube and 3/8″ or 1/2″ auger flights.
| Auger Size | Auger OD” | Casing Size | Hex Sizes | Flight Thickness | Auger Tube OD” | Auger Tube Wall Thickness |
|---|---|---|---|---|---|---|
| 8″ | 7-1/4″ | 8″ | 2-1/4″ | 3/8″ | 4″ | 5/16″ |
| 10″ | 9-1/4″ | 10″ | 2-1/4″ | 3/8″ | 4″ | 5/16″ |
| 12″ | 11″ | 12″ | 2-1/4″, 3″ | 3/8″ | 4″, 5″ | 5/16″, 9/16″ |
| 14″ | 12-1/2″ | 14″ | 2-1/4″, 3″ | 3/8″ | 4″, 5″ | 5/16″, 9/16″ |
| 16″ | 14-1/2″ | 16″ | 2-1/4″, 3″ | 3/8″ | 4″, 5″ | 5/16″, 9/16″ |
| 18″ | 16-1/2″ | 18″ | 2-1/4″, 3″ | 3/8″ | 4″, 5″ | 5/16″, 9/16″ |
| 20″ | 18-1/4″ | 20″ | 2-1/4″, 3″ | 3/8″ | 4″, 5″ | 5/16″, 9/16″ |
| 24″ | 22-1/8″ | 24″ | 2-1/4″, 3″, 4″, 5″ | 3/8″, 1/2″ | 3″, 5″, 6-5/8″, 8″ | 5/16″, 9/16″, 5/8″, 3/4″, 1″ |
| 30″ | 28″ | 30″ | 3″, 4″, 5″ | 1/2″ | 5″, 6-5/8″, 8″ | 9/16″, 5/8″, 3/4″, 1″ |
| 36″ | 33-1/2″ | 36″ | 3″, 4″, 5″ | 1/2″ | 5″, 6-5/8″, 8″ | 9/16″, 5/8″, 3/4″, 1″ |
| 42″ | 39-1/4″ | 42″ | 4″, 5″ | 1/2″ | 6-5/8″, 8″ | 5/8″, 3/4″, 1″ |
| 48″ | 45″ | 48″ | 4″, 5″ | 1/2″ | 6-5/8″, 8″ | 5/8″, 3/4″, 1″ |
| 54″ | 51″ | 54″ | 4″, 5″ | 1/2″ | 6-5/8″, 8″ | 5/8″, 3/4″, 1″ |
| 60″ | 57″ | 60″ | 5″ | 1/2″ | 8″ | 3/4″, 1″ |
| 66″ | 63″ | 66″ | 5″ | 1/2″ | 8″ | 3/4″, 1″ |
| 72″ | 69″ | 72″ | 5″ | 1/2″ | 8″ | 3/4″, 1″ |
| 84″ | 81″ | 84″ | 5″ | 1/2″ | 8″ | 3/4″, 1″ |
* High Grade Steel Plate * 4140 Heat Treated Alloy Steel Hex Connectors * Auger outside diameter is designed for the heavier wall casing to limit the trimming of auger if thicker casing is specified * Auger Bushings on 5″ Hex Augers are reinforced with heavy duty gusset rings to increase strength as connection points
Auger Strength
- Auger Sizes 4”-96” diameter
- Equal to or greater in Torque Capacity, more Inertia-Strength with thicker wall tube. Less Twist equals Longer Life to handle Cyclic loading.
- Heavy wall auger tube exceeds the typical wall thickness used by the competition to meet the high torque produced by MBM auger boring machines.
- Custom auger available for commercial and industrial applications.
Auger Tube Wall Strength Increase for Twisting
Degree of Twist @ 1,000,000 In-Lbs / 10ft Section
