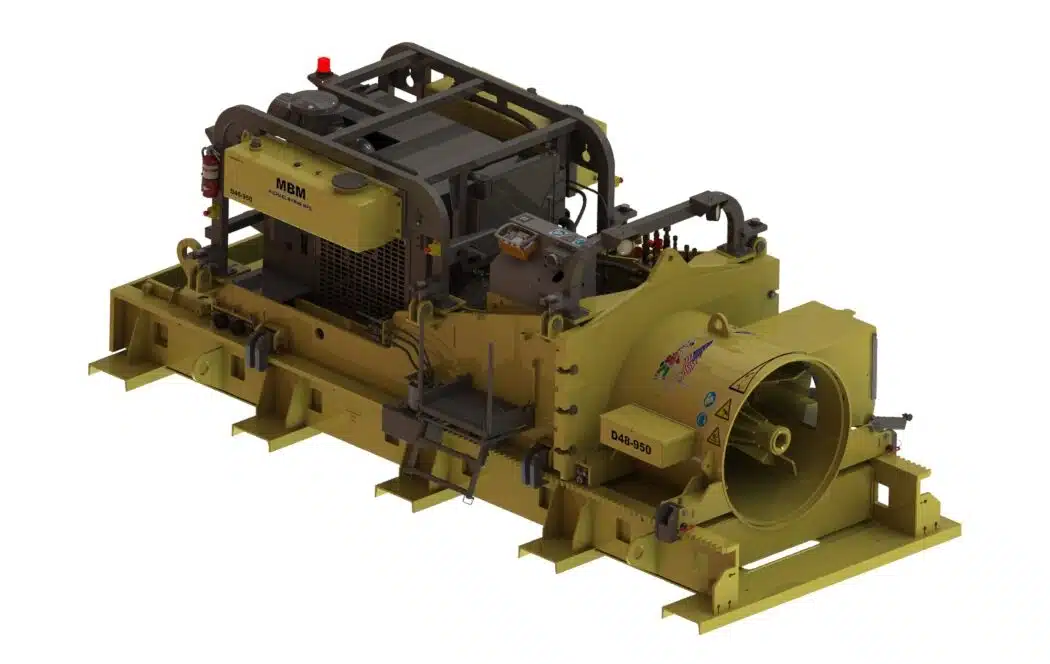

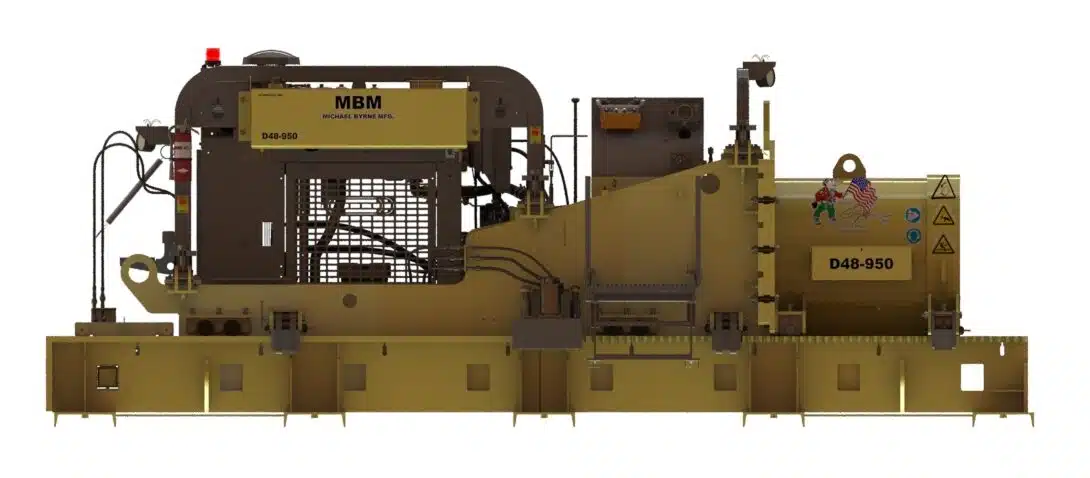

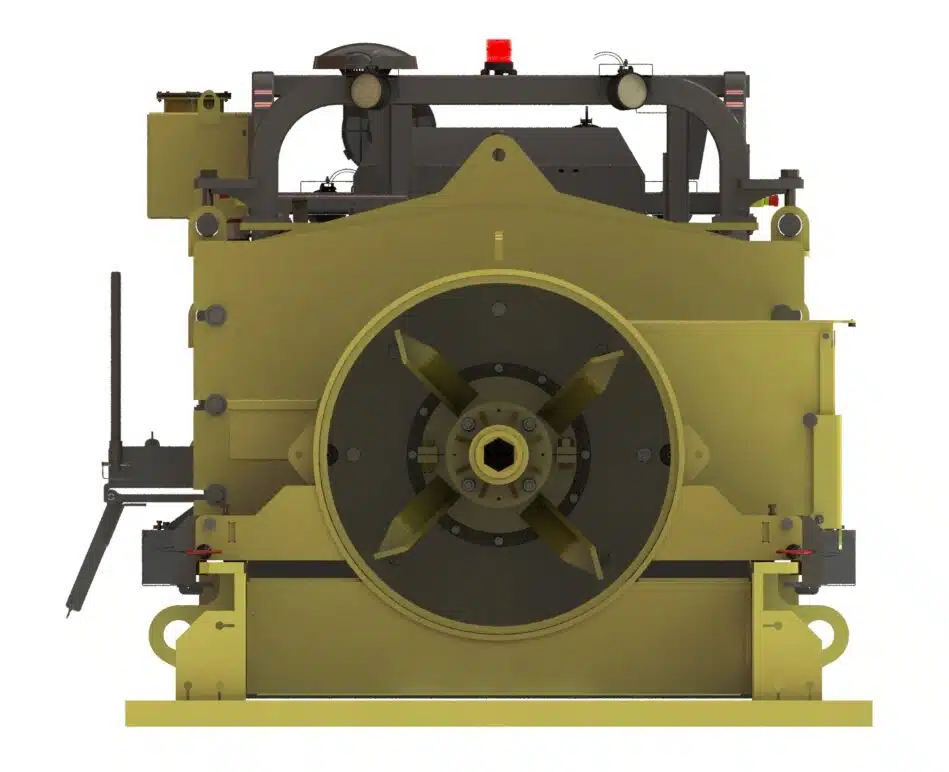

D48/60-1.1

Specifications

Diameter

48/60″

Engine

185 HP John Deere 6068 Final Tier 4

Thrust

1,106,000 lbs

Max. Torque

194,300 ft-lbs

Gear Box

B13-B13 QM Double Planetary Reducer

Reduction Ratio

47.25:1

Operating Weight

52,400 lbs*

*Includes 48″ Master Ring & 2 x Extra Track (4,220 lbs each)

Download D48 Spec Sheet

Standard Features

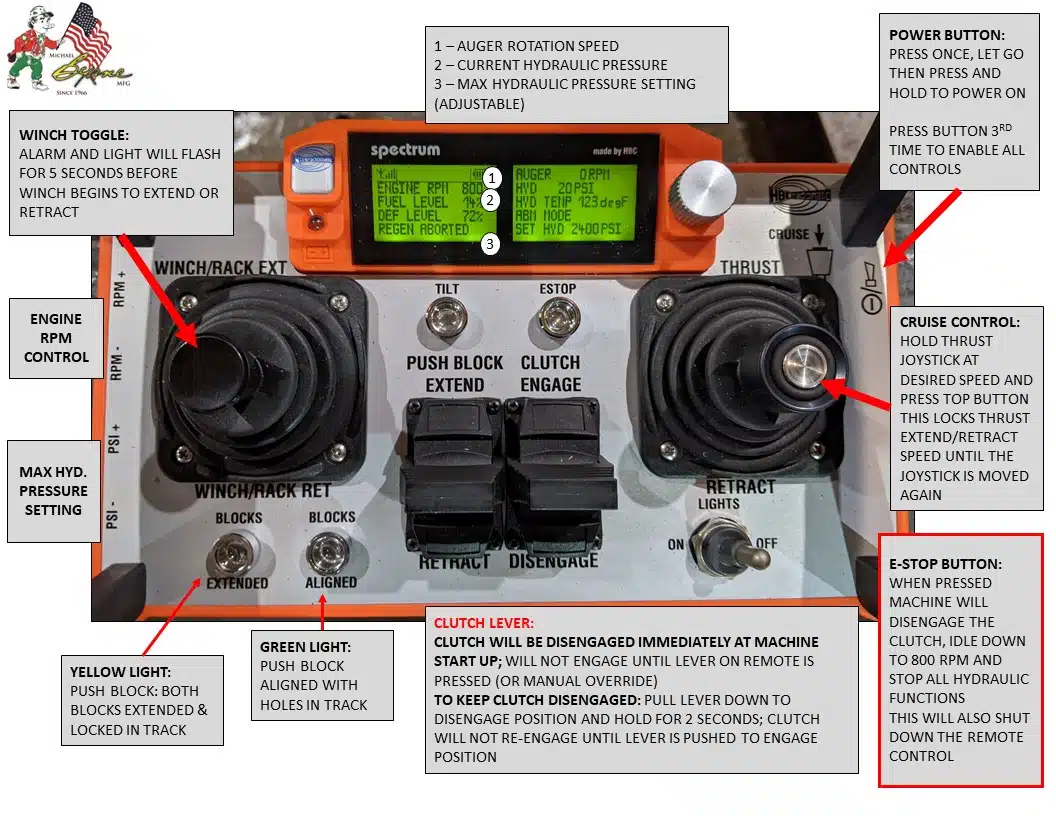

  • Remote control operation
  • Safety: emergency stop buttons and anti-tilt switch
  • “Cruise Control” for setting thrust speed
  • Push block indicator lights for alignment and locking into track
  • Remote operation of clutch, engine speed and hydraulic pressure
  • Real time operating data displayed on the remote control

Options

  • Brake/Drive System

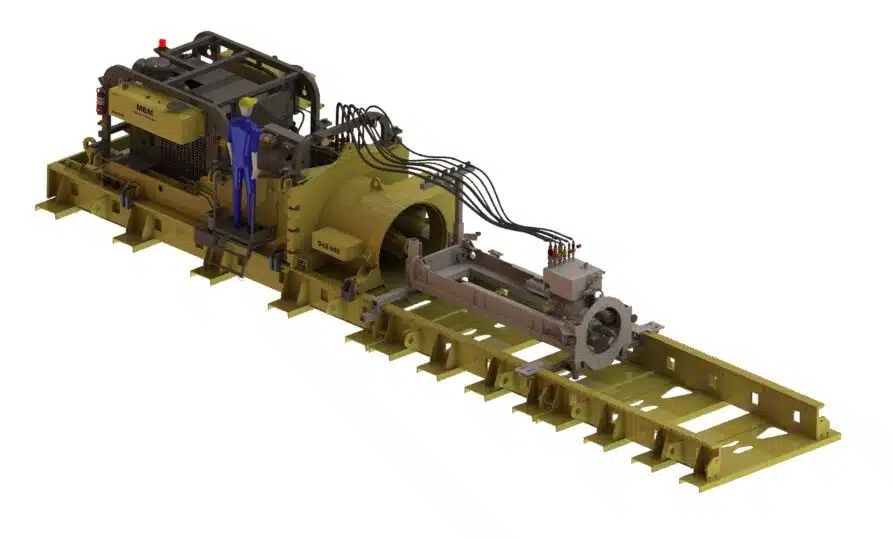

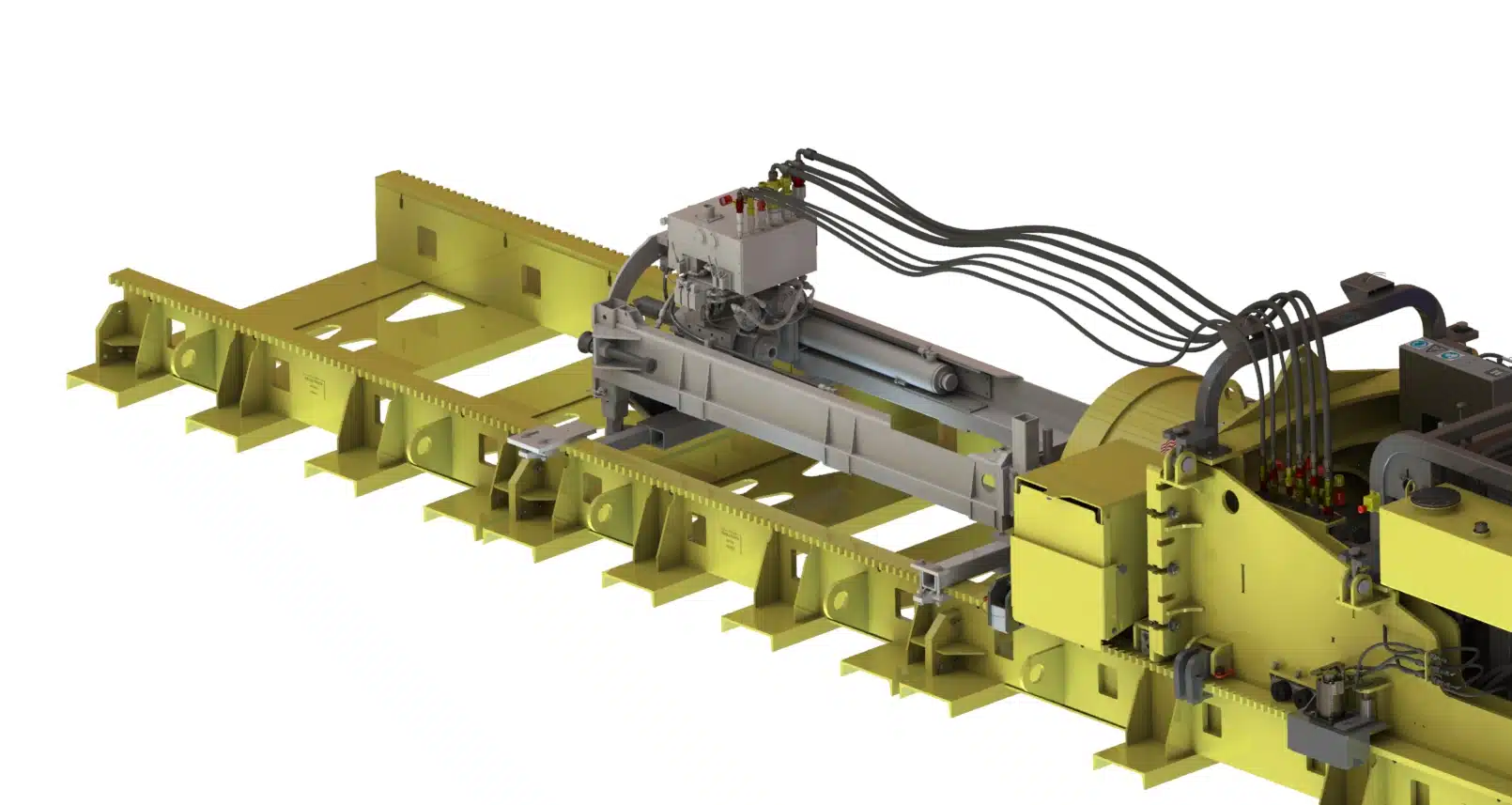

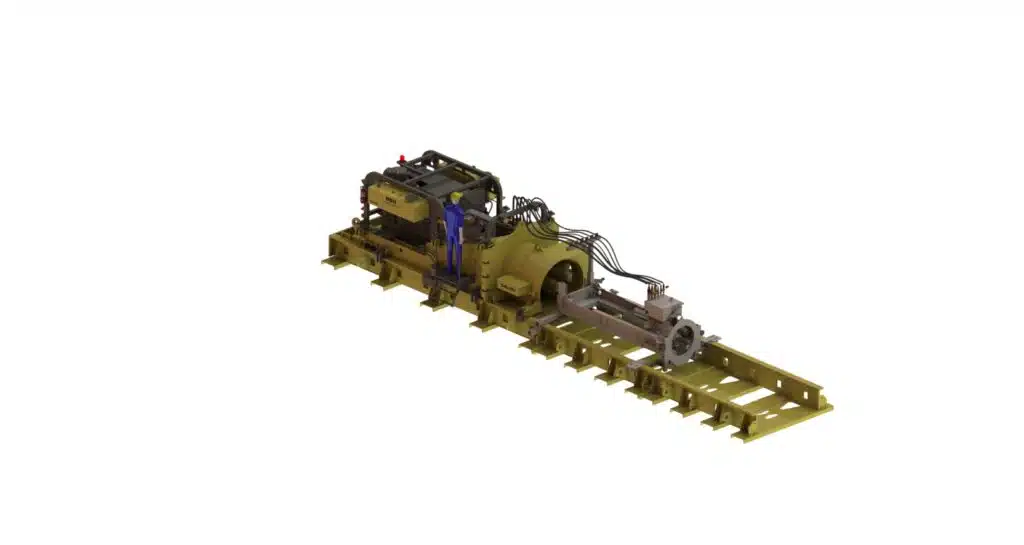

  • Akkerman Guided Bore “Ready” –  allows the auger bore machine to work as the hydraulic power pack for the Akkerman Guided Boring System
