D72-1.5

When your job requires power, reliability and ruggedness the Michael Byrne D72-1.5 auger boring machine is the work horse you can count on. With class leading thrust and torque, the D72 is capable of tackling the toughest trenchless jobs.  Operator safety is at the forefront of this machine with remote control operation and an anti-tilt system included as standard features.

Specifications

Diameter

60/72″

Horsepower

250 HP John Deere 6068 Final Tier 4

Thrust

1,500,000 lbs

Max. Torque

220,000 ft-lbs

Gear Box

MBM B16 QM Double Planetary Spherical Thrust

Reduction Ratio

47.25:1

Operating Weight

56,310 lbs*

*Includes 72″ Master Ring & 2 x Extra Track (4,220 lbs each)

Download D60 Spec Sheet

Standard Features

  • Remote control operation
  • Safety: emergency stop buttons and anti-tilt switch
  • “Cruise Control” for setting thrust speed
  • Push block indicator lights for alignment and locking into track
  • Remote operation of clutch, engine speed and hydraulic pressure
  • Real time operating data displayed on the remote control

Options

  • Brake/Drive System

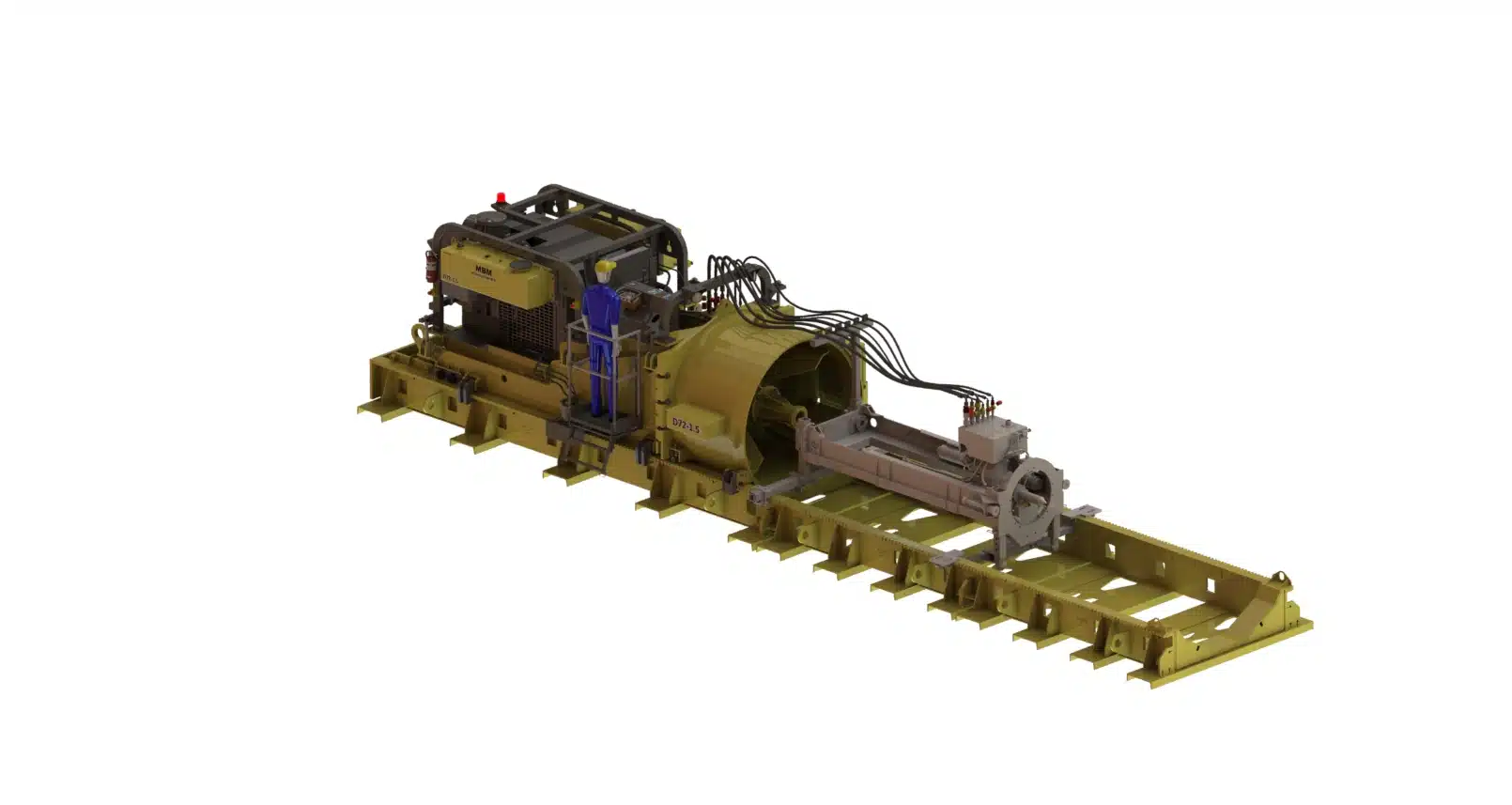

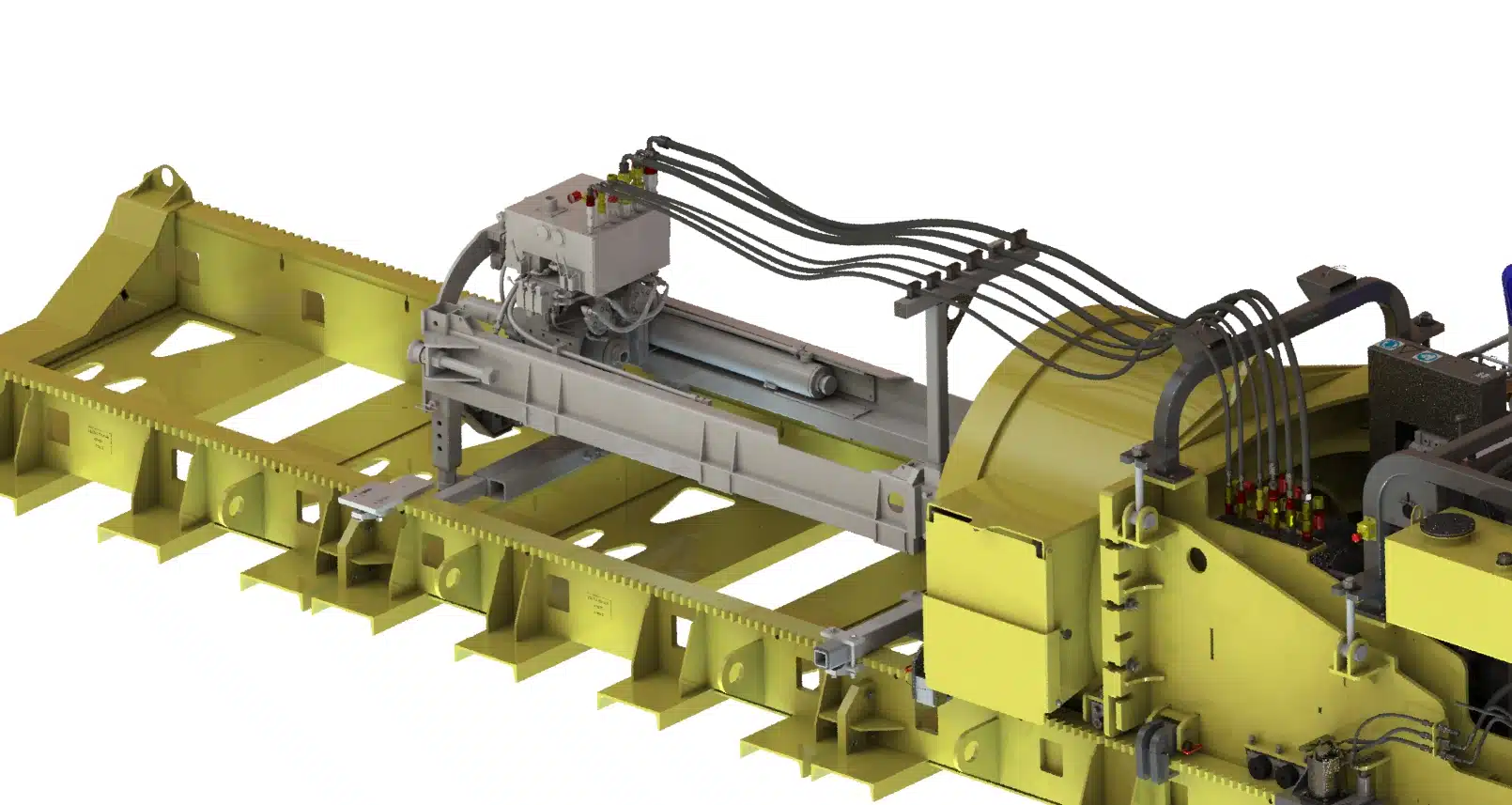

  • Akkerman Guided Bore “Ready” –  allows the auger bore machine to work as the hydraulic power pack for the Akkerman Guided Boring System
